I spent the morning fooling around with the SCT X3 data logging feature by linking to my laptop on SCT Live Link gen II. My main purpose was to determine simply if the lid on the intake had any effect on the air flow rate and intake air temperature as compared to ambient temperature. I also added some additional parameters that we can discuss if anyone sees a reason to do so.

One interesting thing I found that when tuned, the ambient temperature readings were way off. I did these tests back to back to back, and according to my dash readout, the temperature on the third run with the 5 Star tune was about the same as the first 2 runs.

I performed these tests as controlled as possible, starting and ending at the same exact locations, and using cruise control for most of the time.

I started by Idling for 1 minute, and then pulled out and drove 1 mile at 35MPH with cruise control on. At the same point each time, I started the data log recording. At another point, I raised my speed to 40MPH. At any point I was controlling the throttle, I tried to remain as consistent as possible through each test which included a full throttle run starting at 35MPH to test max air flow.


*** IGNORE THE "VALUE" COLUMN, THAT IS JUST THE READOUT AT A CERTAIN POINT ON THE GRAPH WHERE MY MOUSE HAPPENED TO BE POINTING WHEN I TOOK THE SCREEN GRAB ***

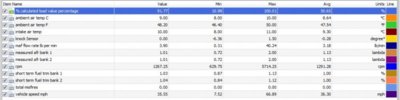

STOCK TUNE AFE STAGE 2 WITH 5 STAR LID (AVG AIR INTAKE TEMP 48.74*F = 1.20*F ABOVE AMBIENT TEMP)

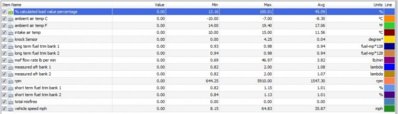

STOCK TUNE AFE STAGE 2 NO LID (AVG AIR INTAKE TEMP 47.39*F = 0.33*F ABOVE AMBIENT TEMP)

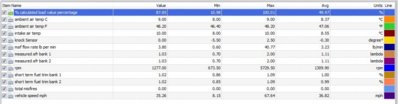

5 STAR 91 OCTANE TUNE FOR AFE INTAKE NO LID










OP
OP
BIRDMAN

BIRDMAN

Birdministrator
Joined
May 16, 2010
Posts
12,915
Reaction score
6,191
Location
Boston
You will notice the 5 Star Tune run resulted in a higher average RPM at the same speed due to the different shift points, but it lowered the total engine load by an average of 5%.

I think this also debunks the myth that running an air intake without a lid will draw "hot" air from under the hood. The run without the intake actually had a lower departure from ambient air temp as compared to running with the 5 Star lid.

The final difference I see is the +6 lb/min max air flow recorded on the full throttle run with the 5 star tune. I do not know whether the tune screws with those numbers, or if that was a true and accurate reading.
